Description

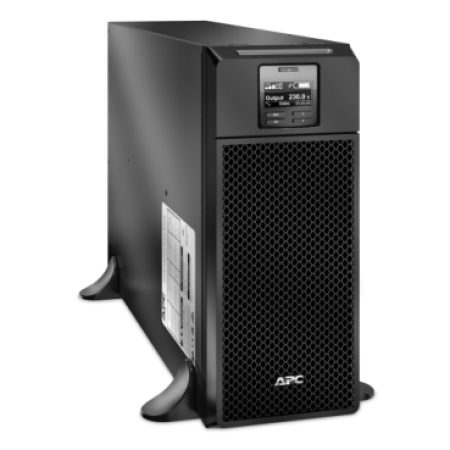

The APC Smart-UPS On-Line SRT6KXLI is a 6000VA / 6000W double-conversion on-line UPS delivering pure sine wave power for critical servers, network equipment, and enterprise applications. Convertible tower design with embedded Network Management Card and SmartSlot expansion provides scalable runtime, remote monitoring, and graceful unattended shutdown via PowerChute Network Shutdown.

Key Specifications

• Capacity: 6000VA / 6000W

• Topology: Double-Conversion On-Line, Pure Sine Wave

• Input Voltage: 220–240V AC, 1-phase, 100–275V adjustable (half load)

• Input Connection: 1 × Hardwire 3-wire (1P + N + E)

• Output Voltage: 220 / 230 / 240V AC, 1-phase

• Outlets: 6 × IEC C13, 4 × IEC C19, 2 × IEC jumper cables

• Form Factor: Tower (compatible with SRTRK2 4-post / SRTRK3 2-post rail kits)

• Embedded Network Management: Yes

• SmartSlot Expansion: 1 available (optional accessory)

• Bypass Type: Internal (automatic and manual)

• Waveform: Pure Sine Wave

• Output Frequency: 50/60 Hz ±3 Hz (sync to mains)

• Harmonic Distortion: <2%

• Crest Factor: 3:1

• Warranty: UPS 3 years, battery 2 years

• Features: Wide input voltage range, tight output voltage regulation, frequency regulation, internal bypass, input power factor correction
